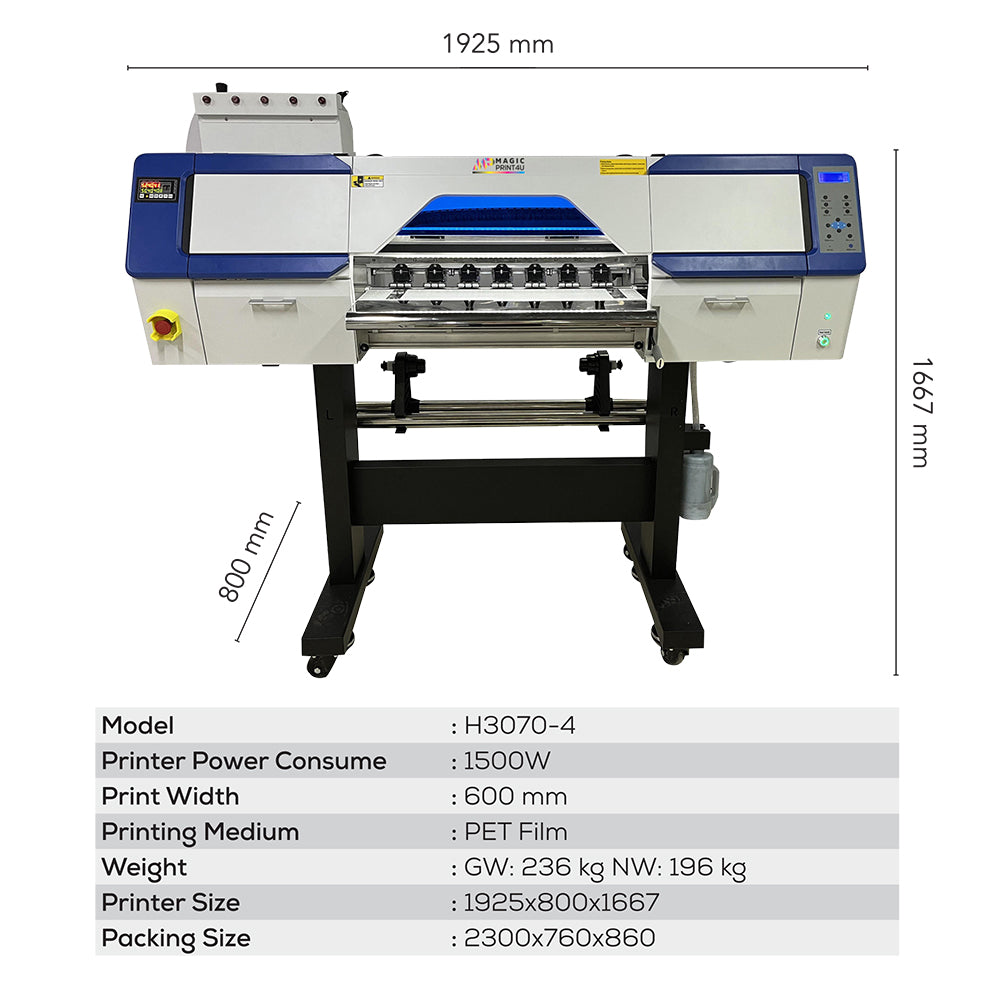

MP DTF 4HEAD PRINTER 24"
MP DTF 4HEAD PRINTER 24"
The MP DTF 4HEAD PRINTER 24" is a state-of-the-art DTF printing system that allows you to bring your creative projects to life. With its wide printing area and high efficiency, this machine is designed to apply impressive designs to clothing, shoes, bags, and more
Couldn't load pickup availability
-
Description
-
Technical Feature
Features
The MP DTF 4HEAD PRINTER 24" comes equipped with advanced technology to support large-scale and detailed printing projects, making it an essential tool for creative businesses.
The MP DTF 4HEAD PRINTER 24" is a cutting-edge direct-to-film printer designed for unparalleled performance and versatility.
Key Features:
Large Printing Capacity: 24" width for detailed designs.
High Performance: Four Epson i3200 print heads with speeds up to 280 sq ft/hr.
Smart Control Interface: User-friendly touchscreen for intuitive operation.
Versatile Applications: Prints on leather, wood, denim, canvas, and more.
Energy Efficiency: Low energy consumption for sustainable production.
Specifications
Print Heads: 4 Epson i3200
Printing Speed: Up to 280 sq ft/hr (4 Pass mode)
Printing Width: 24 inches
Included Software: Photoprint RIP
Starter Supplies: Ink, powder, and film
PC Requirements: I5 processor, 16GB RAM, 1TB HDD
Operating Conditions: 60-75°F, 50-65% humidity
Model: MP DTF 4HEAD PRINTER 24"
Print Width: 24 Inches
Resolution and Speed: 4PASS - 28m²/h, 6PASS - 18m²/h, 8PASS - 13m²/h
Ink Type: Water base pigment ink
Ink Color: Five colors, C M Y K W
Ink Supply Mode: Color ink siphon ink supply and white ink intelligent circulation
Ink Cartridge Capacity: Standard 1000ML/cartridge
Media Type: PET transfer film
Media Movement: Extension automatic feeding and take up system
Nozzle Rack Height: 1.5mm-3.5mm height adjustable (about 2mm is recommended)
Nozzle Clean System: Automatic lifting ink stack, automatic cleaning, flashing, moisturizing, etc
Display: LCD display and computer software panel operation
Data Interface: Gigabit LAN interface
RIP Software: Standard Maintop RIP, Photoprint, etc
Operation System: Win7 64 bit processor i5 / i7 running memory 8GB
Power Supply: AC220V, 50Hz-60Hz
Power: 200W (standby) / 2000W (working)
Operation Environment: Temperature: 15℃ - 25℃, Humidity: 40% - 60%
Package Size: 90"x31"x65"
Package Weight: 130KG
Machine Weight: 160KG
Machine Sizes: 76" x 32" x 66"
