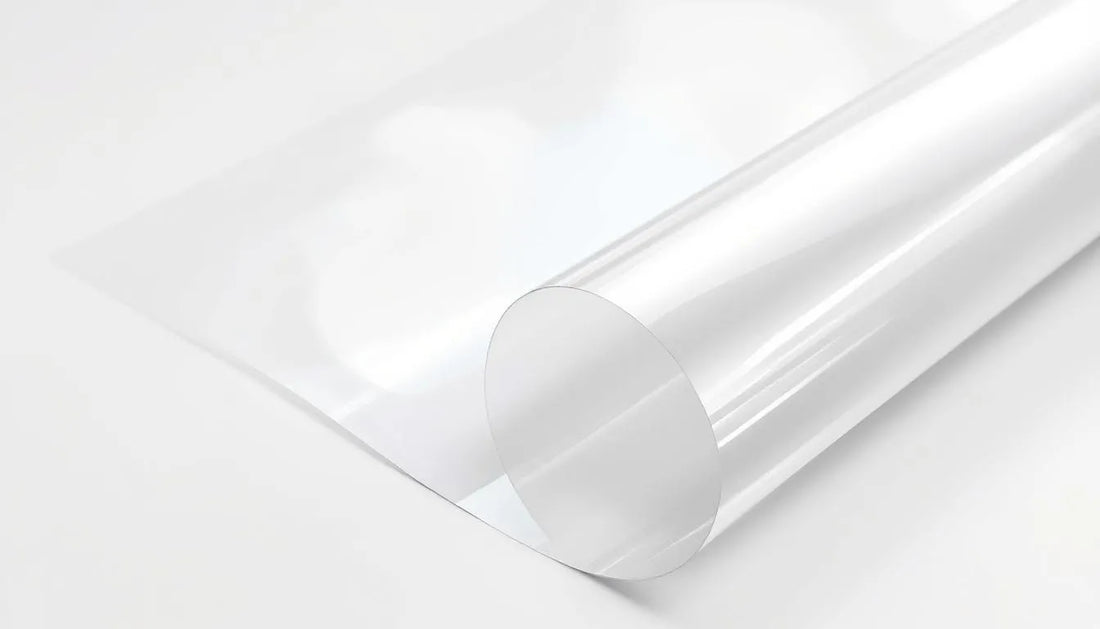

DTF Hot Peel Film Guide: Coatings, Micron Thickness, and Peel Windows
Hot-peel PET film is the runway where your DTF ink becomes a durable transfer. The coating chemistry, micron thickness, and peel window all change color sharpness, hand feel, and throughput. This guide shows you how to pick the right film, tune your press, and avoid costly reprints.
Film Coatings: What They Do (and How to Spot the Print Side)
Common Coating Features
- Ink-receptive layer: Controls dot spread and anchoring of CMYK+White. A good coat yields crisp edges and smooth solids.
- Release chemistry: Lets the cured adhesive/ink stack separate cleanly during peel.
- Anti-static additive: Reduces misting and “pepper” in fills, especially in dry rooms.
- Matte “print side” indicator: Most DTF films print on the matte side. The glossy side faces the heat press.
How to Verify the Printable Side (Quick Checks)
- Fingernail test: Lightly drag a nail—matte side has slightly higher drag.
- Water droplet: A tiny droplet beads less on the printable side (better wetting).
- Vendor label: Keep the box insert or core label; note side and handling instructions.
Recommended Film
Choose a stable, consistent-coated film so your underbase, powder pickup, and peel feel stay predictable: DTF Hot Peel PET Film Roll (24").
Micron Thickness: Stability vs. Flexibility
Typical DTF films range from ~50–100 µm. Thicker films track flatter and resist curl; thinner films can feel nimbler with tight presses. Pair thickness to job type and workflow.
| Thickness | Best For | Pros | Trade-offs |
|---|---|---|---|
| ~50–60 µm (thin) | Small sheets, desktop/A3 setups, intricate details | Conforms well; easy hot peel; sharp micro text | More curl risk; needs careful handling and anti-static |
| ~70–80 µm (standard) | General production on 24" roll systems | Balanced flatness and peel feel; dependable release | None major—strong “all-rounder” if coating is consistent |
| ~90–100+ µm (thick) | Long runs, warm environments, heavy coverage graphics | Excellent flatness; resists head strikes and wrinkles | Peel can feel firmer; may need a touch more press pressure |
Practical Tips by Thickness
- Thin film: Lower head height slightly; ensure ionizer/anti-static is active to keep droplets tight.
- Thick film: Confirm head clearance; a tad more pressure at press can smooth the peel.
Peel Windows: Hot, Warm, or Cold?
Peel window is the moment you remove the carrier after pressing. Hot-peel films are designed for immediate removal, speeding production. Warm/cold peels can offer a different edge quality on some stacks, but add time.
| Peel Type | When to Peel | Typical Press Settings* | Notes |
|---|---|---|---|
| Hot Peel | Immediately (within 1–3 s of opening press) | 150–165 °C, 10–15 s, medium pressure | Fastest workflow; peel in a smooth, shallow angle motion |
| Warm Peel | 5–15 s after press (cool slightly) | Similar temps/times; pressure can be slightly lower | Useful if edges lift with hot peel; increases control |
| Cold Peel | After full cool (30–60 s) | Often 150–160 °C, 12–15 s, medium | Maximum edge security; slowest method |
*Always follow your film’s datasheet. Use an IR thermometer to verify true platen surface temperature.
Finish Press (Highly Recommended)
- After peeling, cover with parchment/Teflon and press 5–10 s to embed adhesive and improve wash fastness.
- Matte vs. glossy: a silicone sheet can add slight gloss; parchment tends to a softer matte.
Getting Crisp Color & Clean Edges
RIP Controls That Matter
- White choke: Add a slight inward offset so white doesn’t protrude and catch excess powder.
- Total Ink Limit: Rich but not tacky on the film. Over-inking worsens peel and powder texture.
- Passes & head height: Use the fewest passes that remove banding; set head gap per film thickness.
Powder & Cure Alignment
- Powder weight: Chest prints often land around 6–10 g; aim for thin, even coverage.
- Cure profile: Many stacks cure around 110–130 °C for 2–6 min (inline). Target a smooth, satin “orange-peel” finish—no crystals.
Troubleshooting by Symptom (Film-Focused)
Edges Lifting During Peel
- Reduce peel speed; try a warm peel instead of hot.
- Increase press pressure slightly; verify platen is truly at temp (IR check).
- Confirm powder is fully cured; under-cure yields weak edge cohesion.
Grainy or “Sugary” Edges
- Mesh too coarse or over-powdering → switch to finer powder (80–120 mesh), reduce grams/print.
- Add white choke; reduce static with ionizer and RH 45–60%.
Film Sticking After Peel (Too Tacky)
- Over-inked or under-cured stack: lower TIL slightly and/or improve cure uniformity.
- Ensure you pressed within the film’s recommended window (time/temp/pressure).
Muted Color / Dull Blacks
- Verify printable side; wrong side mutes gamut.
- Check ICC/linearization and TIL; over-cure can also compress color—balance cure and ink.
Handling & Storage Best Practices
- Keep bagged until use; let rolls acclimate to room humidity to prevent curl.
- Store flat (sheets) or upright (rolls) in a cool, dry place away from direct sun.
- Dust control: a single fiber on the film can imprint into the adhesive—wipe benches, use tack cloths sparingly.
Quick Setup Checklist (Print This)
- Film printable side up; head height verified for thickness
- RIP mirrored; white choke set; TIL at a non-tacky level
- Powder weight in target range; cure to satin finish (IR-verified)
- Press: 150–165 °C, 10–15 s, medium; peel per window (hot/warm/cold)
- Finish press 5–10 s; quick stretch test; edge check
Recommended Supplies (Consistent & Proven)
- DTF Hot Peel PET Film Roll
- DTF Pigment Ink (CMYK + White)
- DTF Hot Melt Powder
- DTF Strong Cleaning Solution
Bottom Line
Choose a consistent coating, match micron thickness to your workflow, and follow the film’s peel window with verified press temperature. Combine that with thin/even powder and a true-to-spec cure, and you’ll get cleaner edges, brighter color, softer hand, and rock-solid wash results—every time.
