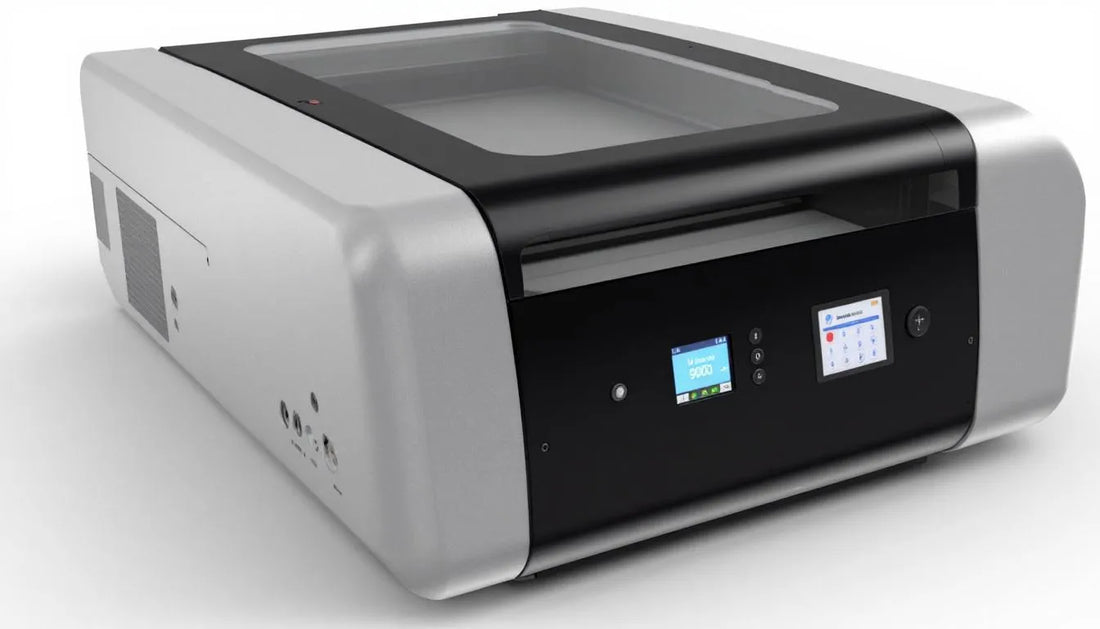

A UV flatbed 9060 (≈ 900 × 600 mm bed) packs commercial capability into a compact footprint. It prints CMYK, White, and often Varnish directly onto rigid and semi-rigid materials with UV-LED curing. This guide shows what to look for in mechanics and bed design, how ink sets affect adhesion and appearance, and how to benchmark real-world productivity before you buy.

Hardware Choices That Matter (Bed, Gantry, Z-Height & Registration)

Bed Size & Usable Area

  • Nominal bed: 900 × 600 mm gives ~0.54 m² print area—enough for multi-up signage, jig plates, A2 sheets, or small product arrays.
  • Usable vs. nominal: Rails and margins can reduce edge-to-edge coverage. Confirm the imageable area your RIP can place without risking head strikes.
  • Nesting potential: A4 (210 × 297 mm ≈ 0.062 m²) fits about 8–9 up per bed with sensible margins.

Z-Height & Auto Height Sensing

  • Media thickness: Many 9060s accept up to 100 mm (≈ 4 in). If you print boxes, plaques, or jigs holding tall parts, verify the stack height.
  • Auto height sensor: Essential to prevent head crashes and keep drop placement consistent across warped or multi-level surfaces.

Vacuum Zones & Pin Registration

  • Vacuum table: Zoned vacuum holds thin sheets flat (PVC foam, acrylic) and reduces micro-vibration that causes banding.
  • Pins/locators: Add repeatability for two-sided prints, reloads, and jig plates. Ask if the bed supports removable pins or alignment rails.

Carriage, Rails & Stability

  • Motion platform: Steel/granite frames with linear rails damp vibration. Smooth carriage motion = smoother gradients and small text fidelity.
  • Ionizer/anti-static: Reduces overspray on plastics and in dry rooms.
  • Crash sensors: Pause on contact with raised features; a must for uneven media or 3D textures.

RIP & Layer Control

  • White strategies: Underbase density, choke/bleed control, and spot white for glass/acrylic windows or back-printing.
  • Varnish control: Flood coats for protection; spot varnish for gloss effects or raised textures.
  • ICC/linearization: Media-specific color management is non-negotiable for brand colors and consistent gloss.

Safety & Environment

  • Provide local ventilation per SDS. UV-LEDs reduce heat but still require exhaust/filtration for odor management.
  • Maintain stable temperature/humidity; control dust and static to protect nozzles and print quality.

Inks, Adhesion & Productivity Benchmarks (Real Numbers You Can Use)

Ink Channels: CMYK, White & Varnish

  • CMYK: Thin, instantly cured films; tune lamp power to avoid tackiness or brittle over-cure.
  • White: Opaque underbase for dark/clear media; dual-white lanes boost coverage and speed.
  • Varnish: Flood for protection/uniform gloss; or selective for spot gloss and raised textures.

Adhesion Aids & Primers

  • Challenging substrates: Glass, metals, and low-surface-energy plastics (PP/PE) may need an adhesion promoter.
  • Tape-pull test: After curing, a simple tape test quickly gauges bond strength; iterate lamp power and primer choice accordingly.

Material Compatibility (Typical)

  • Acrylic & polycarbonate: Backlit signs, awards; use spot white for opacity on clear.
  • PVC foam, PS sheets: Indoor signage and POP; fast modes often suffice.
  • Coated metals & ACP: Nameplates, compliance labels; prioritize underbase white + varnish for durability.
  • Coated wood/MDF & leather/PU: Décor and covers; test flexibility and edge soak.
  • Ceramic tiles, cases: Personalized goods with spot varnish accents.

Speed Modes & What They Mean

  • Draft/Signage: Fewer passes; great for simple graphics where micro-detail isn’t critical.
  • Production: Balance of speed/quality for most commercial work.
  • Fine/High-quality: Many passes; best for small text, photos, and heavy layering (white + varnish).

Throughput Benchmarks (9060 Bed Math)

The 9060 bed area is ~0.54 m². Use your vendor’s square-meters-per-hour figures to estimate cycle times:

  • Draft example: 12 m²/h → 0.54 ÷ 12 = 0.045 h = ~2.7 minutes/bed.
  • Production example: 6 m²/h → 0.54 ÷ 6 = 0.09 h = ~5.4 minutes/bed.
  • Fine example: 3 m²/h → 0.54 ÷ 3 = 0.18 h = ~10.8 minutes/bed.

Layer penalty: Adding dense white and spot varnish increases passes; expect cycle times to lengthen vs. 4-color signage modes.

Quick ROI & Capacity Planning

  1. Define your typical job: e.g., 20 phone cases per bed (via jig), or 8 A4 signs per bed.
  2. Pick a mode: Use Production or Fine for client-facing work; note minutes/bed from the math above.
  3. Daily beds: If Production is ~5.4 minutes/bed, one hour yields ~11 beds (60 ÷ 5.4 ≈ 11.1). An 8-hour shift ≈ ~88 beds before changeovers.
  4. Units/day: 88 beds × 20 phone cases ≈ ~1,760 cases/day (theoretical; subtract setup and QC).
  5. Contribution margin: Model ink + varnish + primer + labor + overhead; premium finishing (spot gloss/texture) supports higher prices.

Quality & Consistency Tips

  • White choke: Reduce white edge slightly to avoid halos around color elements.
  • Gloss uniformity: Balance lamp power and carriage speed; clean lamp covers/fans.
  • Fine text: Use variable dot and align bi-directional timing regularly; avoid hairlines below ~0.2–0.3 mm.

Jigs & Multi-Up Efficiency

  • Design jig plates with tight pockets and fiducial marks the RIP can target.
  • Combine pins + vacuum to tame thin/warped parts; this cuts handling time 40–60% on small items.

Maintenance That Protects Uptime

  • Daily: Nozzle check; wipe caps/wipers; inspect capping seal; clean dust from bed/rails.
  • Weekly: Verify feed and bi-directional alignment; check vacuum zones/filters; clean lamp covers.
  • Monthly/Quarterly: Replace dampers/filters per hours-run; re-linearize/ICC if media or ink lots change.
  • Ink care: Store within spec; gently agitate white if recommended; maintain circulation to reduce settling.

Common Pitfalls & Fast Fixes

  • Banding: Add passes; clean nozzles; confirm carriage rail lubrication and feed calibration.
  • Poor adhesion: Use primer; adjust lamp power; ensure substrates are clean and static-controlled.
  • Uneven gloss/tack: Rebalance lamp power vs. speed; ensure varnish laydown is even.
  • Head strikes: Recheck Z-height and flatness; enable crash sensors; use pins for warped sheets.

Buyer’s Shortlist (Print This)

  • Confirmed usable area on a 9060 bed; Z-height vs. your tallest jigs/parts.
  • Head/channel map (CMYK+W+V?), variable dot, and availability of spare parts.
  • Vacuum zones, pin registration, auto height sensor, anti-static/ionizer.
  • RIP features for white/varnish control, nesting, spot channels, ICC/linearization.
  • Adjustable UV-LED lamp power and effective cooling; easy access to caps/wipers/dampers/pumps.
  • Training, local service SLAs, and a clear preventive maintenance schedule.

Final Takeaway

A UV flatbed 9060 earns its keep when you pair a stable bed/gantry with smart RIP control of white and varnish. Benchmark with real square-meter numbers, plan for layered print penalties, and build jigs that let you print more per bed. Do that—and maintain your ink and mechanics—and you’ll hit consistent quality, predictable lead times, and margins worthy of premium, short-run work.
