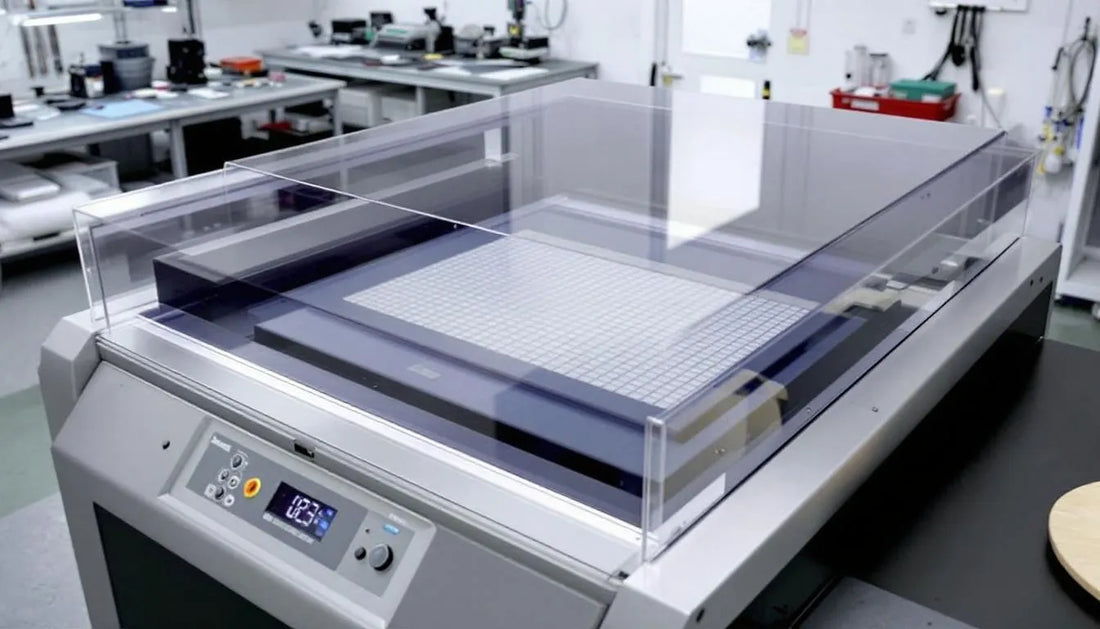

UV Flatbed Printer 9060 Explained: Specs, Materials, and Application Ideas

A UV flatbed 9060 printer is a compact, workhorse platform built around a ~900 × 600 mm (≈ 35.4 × 23.6 in) bed. It uses UV-LED curable inks to print CMYK, White, and often Varnish directly onto rigid or semi-rigid media. If you need short-run signage, product mockups, nameplates, or customized hard goods with photo-grade color and special effects, a 9060 is the “small but serious” option worth understanding.

UV Flatbed 9060: Core Specs & Architecture

Bed Size, Z-Height & Fixturing

• Print area: Nominal 900 × 600 mm gives room for multi-up layouts, A2 sheets, and jig plates.
• Z-height (media thickness): Commonly up to 100 mm (≈ 4 in), sometimes 150 mm. An auto height sensor prevents head crashes.
• Vacuum table: Zoned vacuum holds sheets flat; add registration pins for repeatable, two-sided or multi-pass alignment.
• Jigs/fixtures: For small items (pens, cases, badges), CNC or 3D-print a jig plate to speed loading and keep parts square.

Printheads & Channels

• Head types: Industrial piezo heads with variable dot (e.g., Ricoh/EPSON classes) for fine text and smooth gradients.
• Channel layouts: CMYK | CMYK+W | CMYK+W+V (varnish). Dual white lanes speed underbase and enable high opacity on dark media.
• Ink delivery: Negative-pressure systems and white recirculation reduce settling and clog risk.

Resolution, Pass Modes & Throughput

• Addressable resolution: Up to 1440 × 1440 dpi is typical; quality comes from variable dot more than the raw dpi number.
• Pass modes: Draft (fewer passes) for layouts and jig checks; Production (balanced); Fine-art (many passes) for photos or small logos.
• Speed planning: Expect a spectrum from fast signage modes to slow layered builds (white + color + varnish).

Inks, Curing & Special Effects

• UV-LED inks (CMYK): Instant cure, low heat impact, adhesion tuned via primers when needed.
• White ink: Underbase on dark/clear materials; spot white for window graphics and layered effects.
• Varnish (clear): Flood for protection/gloss or spot varnish for selective shine, tactile textures, or raised effects.
• Lamps: UV-LED arrays (≈395–405 nm) with adjustable power to avoid over/under-curing.

Transport, Registration & Stability

• Granite/steel chassis and linear rails keep motion smooth and reduce banding.
• Ionizer/anti-static bars help droplet placement on plastics and dry substrates.
• Crash sensors: Pause if a raised area or warped sheet enters the carriage path.

RIP & Color Management

• White control: Underbase density, choke/bleed, spot white channels for glass/acrylic.
• ICC profiles & linearization: Media-specific profiles for accurate color and consistent gloss.
• Layering: Define print order (e.g., color→white→varnish or white→color→varnish) by application.
• Nesting & imposition: Gang small pieces to maximize bed usage and reduce handling.

Safety & Environment

• Provide local ventilation; follow SDS for UV inks and primers.
• Manage ozone and odor from curing; keep lamps/fans clean for consistent output.
• Maintain stable temperature/humidity and control dust/static.

Materials, Applications & Workflow

Supported Materials (Typical)

• Acrylic/Plexiglass & Polycarbonate: Signage, backlit panels, awards. Use white for opacity on clears.
• PVC foam board (Forex), PS sheets: Indoor signage, POP displays.
• Aluminum composite panel (ACP), coated metals: Durable plates, nameplates, industrial labels.
• Glass (with primer): Décor panels, wayfinding, door signs; reverse-print with white for depth.
• Wood/MDF (coated/sanded): Plaques, décor, packaging lids; spot varnish for texture.
• Leather/PU & coated fabrics: Covers, menus, custom goods (test flexibility requirements).
• Ceramic tiles (coated) & phone cases: Personalized products and prototypes.

Application Ideas That Sell

• Retail & POP: Shelf talkers, price boards, edge strips, kiosk headers.
• Branding & Packaging mockups: Prototype boxes, sleeves, and rigid inserts with spot gloss.
• Plaques & awards: Clear acrylic with back-printed color + white + varnish for a premium layered look.
• Asset & compliance labels: Serial/QR plates on coated metal or plastics.
• Hospitality & décor: Room signs, menu covers, small décor panels, coasters.
• Tech accessories: Laptop skins, cases, hubs—produced via jigs, multi-up on the bed.
• Braille/raised effects: Multiple varnish passes for tactile legends on ADA-style signage (verify local standards).

From File to Finished Piece (Workflow)

1. Prepare artwork: RGB master, embedded links/fonts, transparent backgrounds for die-cut looks.
2. RIP setup: Media profile, white strategy (underbase vs. spot), varnish coverage (flood/spot), pass mode.
3. Fixture/load: Clean bed, align with pins, enable vacuum zones to avoid warps.
4. Test swatch: Confirm registration, text crispness (2–3 pt possible with proper setup), and gloss uniformity.
5. Print & cure: Tune lamp power/carriage speed to prevent tackiness or over-cure brittleness.
6. Finish: Trim, de-burr edges, add hardware (standoffs, tapes) as needed.

Jig Strategies for Small Items

• Design jig plates in CAD with tight pockets to register each part quickly.
• Add fiducial marks the RIP can target for consistent alignment after reloads.
• Use vacuum + pins together when parts are thin or warped.

White, Varnish & Texture Tricks

• Reverse print on clear: Color → white → varnish; flip for a glossy, protected face.
• Selective varnish: Spot gloss logos over matte photos for premium contrast.
• Raised textures: Multi-layer varnish builds tactile patterns (woodgrain, emboss).
• Window graphics: Spot white behind brand elements; leave clear areas for see-through.

Adhesion & Primers

• For glass, metals, and low-surface-energy plastics, test an adhesion promoter/primer.
• Do quick tape-pull tests after curing; adjust lamp power and primer choice as needed.

Cost & ROI: Quick Math

• Consumables: UV ink usage is efficient due to thin, cured layers; white and varnish add cost but enable premium pricing.
• Pricing power: Spot gloss, texture, and short lead times justify higher margins vs. commodity prints.
• Throughput planning: Multi-up nesting + jigs can cut handling time by 40–60% on small items.

Example: If a 9060 run yields 20 phone cases per bed with $0.35 materials each and $6 sale price, even modest daily batches build healthy contribution margins. Replace with your actuals after a week of calibrated production.

Maintenance Checklist

• Daily: Nozzle check; wipe caps/wipers; inspect capping seal; clean dust from the bed and rails.
• Weekly: Check vacuum zones and filters; verify bidirectional timing and feed; clean lamp covers/fans.
• Monthly/Quarterly: Replace dampers/filters per hours-run; re-linearize/ICC if media or ink lot changes.
• Ink care: Store within spec; gently agitate white if recommended; keep lines moving to reduce settling.

Troubleshooting at a Glance

• Banding: Increase passes, clean nozzles, verify carriage rail lubrication and feed calibration.
• Poor adhesion: Try primer; adjust lamp power; ensure substrate is clean and static-controlled.
• Uneven gloss/tack: Balance lamp power and carriage speed; confirm varnish laydown is uniform.
• White halos: Add choke to white underbase or reduce density slightly at edges.
• Head strikes: Recheck Z height and flatness; enable crash sensor; use pins to tame warped sheets.

Buyer’s Shortlist (Print This)

• Bed size (9060) and usable printable area; Z-height vs. your thickest parts.
• Head/channels: CMYK+W+V? Dual white? Variable dot capability and spare parts availability.
• Vacuum zones, pins, and auto height sensor; crash/anti-static features.
• RIP functions: white/varnish control, nesting, spot channels, ICC + linearization tools.
• Lamp power adjustability and cooling; maintenance access to caps, wipers, dampers, pumps.
• Training, local service, and a clear preventive maintenance schedule.

Final Takeaway

A UV flatbed 9060 delivers big-printer capabilities in a compact footprint: direct print on rigid media, layered white, and spot-varnish effects that command premium pricing. Pair stable mechanics (vacuum, pins, crash sensing) with disciplined color management and maintenance, and you’ll unlock fast turnarounds, consistent quality, and profitable short runs across signage, décor, and customized products.
